MR-LINAC

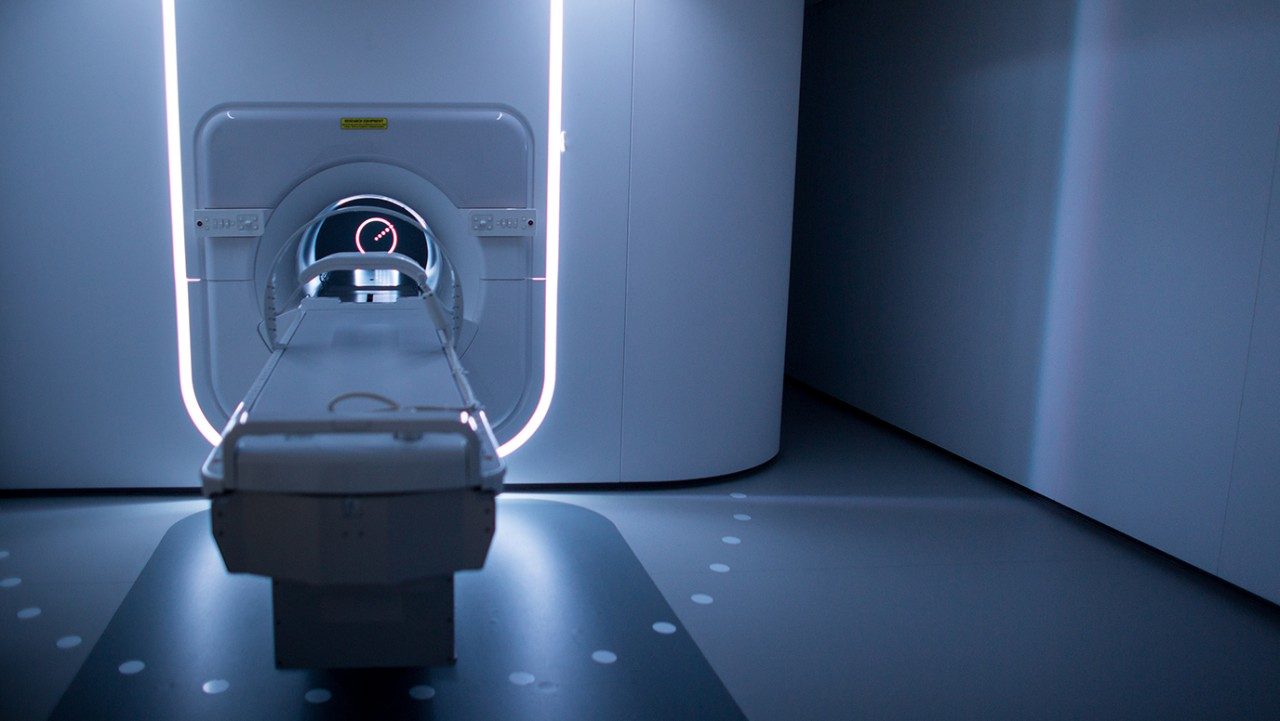

• High-field imaging for visibility: 1.5 tesla MR scanner · Bore width 70 cm, tunnel length 132 cm · MR coil solution specifically developed for low attenuation of the beam (0.6% for anterior coil) · Imaging field of view up to 50 cm · Gradient peak amplitude (mT/m) 34,1 peak slew rate (T/m/s) 1201 · Intelligent SAR management through RF-SMART technology · dStream digital broadband technology · Geometric accuracy: - <= 1 mm for a 20 cm sphere - <= 2 mm for a 34 cm sphere - <= 2 mm for a 42 cm sphere (typically)
• Precision delivery: · 7MV FFF beam · 160-leaf MLC technology, based on Agility - Collimation resolution: 1 mm - Leaf and diaphragm speed: 6 cm/sec - Leaf positioning accuracy: 1 mm APE / 0.5 mm RMS · Leaf speed: 6 cm/sec · Continuous rotation capability at max gantry speed of 6rpm · Field size: 57.4 x 22 cm · SISO technology for servicing ease
• Integration for treatment adaptation: Responsive workflows allowing adapt to position, shape and motion · Rigid or deformable registration · Imaging template to ensure clinical intent is met · GPUMC dose calculation using the Particle Transport Algorithm for modeling of beam path in magnetic environment · Dosimetric criteria provides quick insight in dose constraints · Workflow console with two screens for the online adaptive workflow

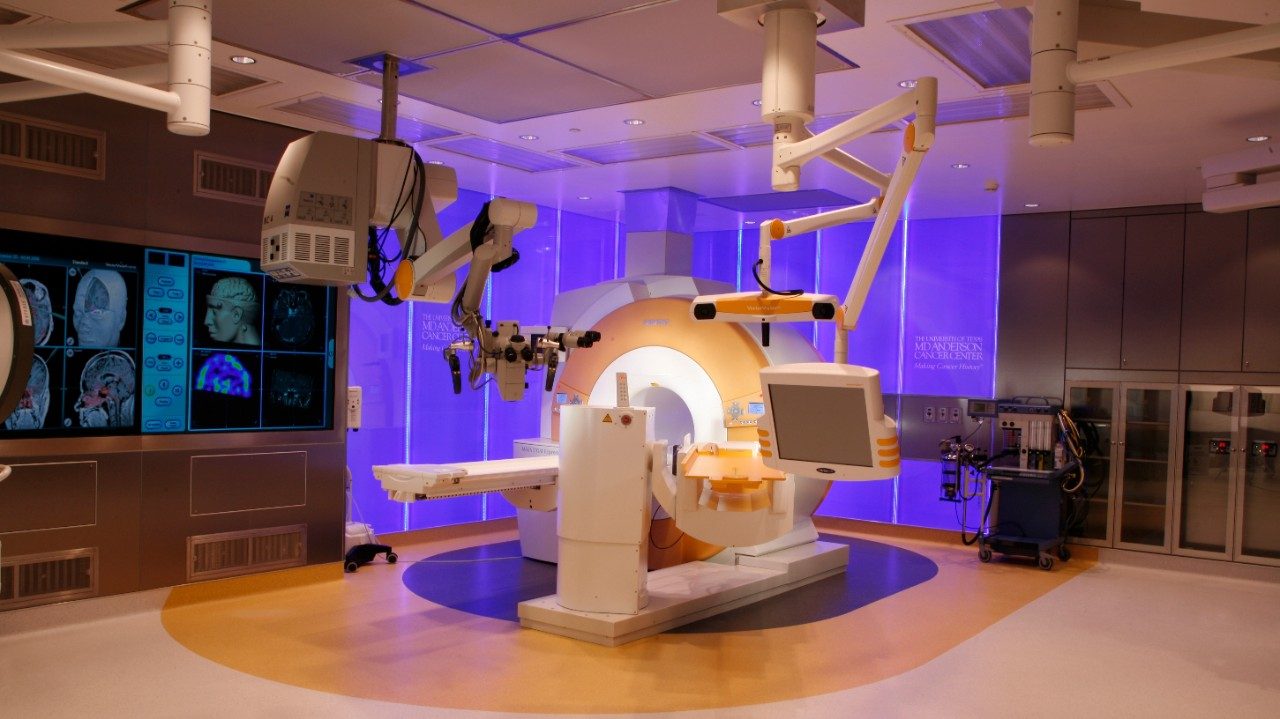

BrainSuite iMRI:

• Magnet
  • Very compact 1.5 Tesla Magnet
  • Length: 120 cm (47.2 in)
  • Inner Bore Width: 70 cm (27.6 in)
  • Magnet Weight (Including Helium): approx. 3800 kg (8377 lbs)
  • Unique CT-like 70 cm Open-Bore diameter with high homogeneity over 30 cm
• Computer
  • Siemens Espree 1.5T uses syngo – Highly intuitive cross-modality user interface – the basis for all MAGNETOM Espree with I-class applications. syngo computer enables you to expand your capabilities in every clinical field
• Siting
  • 30 qm / 323 sq ft floor only
  • No computer room is required for a total of two water-cooled electronics cabinets

MIYABI Suite: 2D CT-guided solutions offered with the SOMATOM Emotion and SOMATOM Perspective

• Basic Intervention
  • Suited for non-fluoroscopic guidance
  • Biopsy mode based on sequential or spiral scans modes
  • Quick switching between scan mode
  • Control at the table side with joy stick (or i-Control for SOMATOM Perspective)
  • Image guidance facilitated by displaying 3 slices simultaneously
  • In-room monitors available in various options e.g. on a cart or ceiling-mounted
  • The Advanced Intervention package
  • CT fluoroscopy with CARE Vision allowing for image guidance in near real-time
  • HandCARE™ avoids direct radiation of the clinician’s hand during the intervention by switching off the X-ray exposure for a 100° angle between three possible user positions (10:00, 12:00 and 2:00 o’clock)
  • Continuous patient dose monitoring during procedures
• 2D & 3D CT-guided solutions with the SOMATOM Definition family and with SOMATOM Force
• Adaptive 3D Intervention Suite
  • Premium solution for 2D & 3D CT-guided interventions that demand precision and speed
  • i-Control offers full control of software functionality and table movement at the table side (wired or wireless)
  • Full 2D guidance capability
  • 3D volume-based interventions
    – Work freely in all dimensions
    – near real-time reconstructed MPR images
    – MPRs in coronal, sagittal, and oblique planes
• CT fluoroscopy, sequential, and spiral scan modes
• Ability to quickly switch between i-Sequence, i-Spiral, and i-Fluoro modes
• i-Fluoro CT Fluoroscopy displayed in real-time with up to 10 frames/s
• Interventional 3D toolbar available supporting smart algorithms from syngo® 3D tools:
  – Automated Path Planning by selecting target and entry points
  – Auto Needle Detection


HyperWorks Software

HyperWorks Software which allows modeling, linear and nonlinear analyses, structural and system-level optimization, fluid and multi-body dynamics simulation, electromagnetic compatibility (EMC), multiphysics analysis, model-based development, and data management solutions.

Workstations

• Dell Precision T7920:

  • High performance capabilities featuring the latest Intel® Xeon® processor Scalable family with up to 28 cores per processor or a total of 56 cores when customized with Dual processors.

  • Storage up to 1.5TB of new faster 2666 Mhz RDIMM/LRDIMM expandable memory that allows acceleration of workflow without slowdown.

  • Features multichannel thermal design for advanced cooling and acoustics.

  • Design allows flexibility with up to 10x2.5”/3.5” SATA/SAS drives or up to 4x M.2 or U.2 PCIe
  • NVMe SSD. With the hot-swap feature on the M.2 and U.2 PCIe NVMe SSDs


Nvidia Deep Learning Workstation (2):

• 72X the performance for deep learning training, compared with CPU-based servers
• 100X in speed-up on large data set analysis, compared with a 20 node Spark server cluster
• 5X increase in bandwidth compared to PCIe with NVIDIA NVLink technology
• Maximized versatility with deep learning training and over 30,000 images/second inferencing

Precision X-Ray Irradiation SmART Platform / Precision X-RAD 225Cx

• The Small Animal Radiation Therapy (SmART) platform is a state-of-the-art focal irradiation system that mimics clinical radiotherapy and imaging.
• Using Cone-Beam CT, µCT and a fully integrated Bioluminescence (BLI) imaging module, the SmART has the ability to image, target, and irradiate cells, and small animals ranging from mice to rabbits with unprecedented accuracy.
• The interface of the SmART-Advanced Treatment Planning (ATP) system allows the user to define complex treatment plans with the simple click of a button.
• Combines a high accuracy cone beam CT imaging system and a high dose delivery X-ray source in a single platform.
•  Similar to clinical systems, the isocentric design allows the specimen to remain stationary while the imaging and treatment platform rotate a full 360 degrees around the subject, thereby improving total dose delivery to the targeted area and reducing damage to non-targeted surrounding structures.
• The stationary specimen platform also allows co-registration of imported data from other imaging modalities to be seamlessly fused in order to improve visibility of the affected area thereby promoting more accurate treatment planning.
• Conformal collimation of the Orthovoltage X-ray beam can repeatedly target areas smaller than 1mm with exacting precision.
• Features: Fully Shielded Cabinet System; Stationary Isocentric Specimen Couch; 360° Rotational Gantry; 3D Volumetric CT Imaging & Reconstruction Software and Precise Conformal Beam Collimation to <1mm.

Interventional Simulation Suite (In Development)

• Shielded bench top CBCT room with surgical navigation capabilities to investigate image integration into the surgical and minimally invasive interventional suites.
• The capability to use anatomical modeling for pre-surgical planning and accurately map the planning imaging onto the intra-intervention imaging for significant improvements in the efficacy of the intervention and ultimately reduce the morbidity.
• The ability to update the models with imaging information (including limited information such as 2D images or partial volume images) obtained throughout the surgical process to provide additional information to the clinician on residual tumor and the position of the critical normal tissues

Correlative Pathology Technology

• Nikon 105 mm F/2.8:

  • Provides continuous focusing from Infinity to life-size (1:1), offering extra working distance in demanding conditions.

  • New VR II Vibration Reduction offers the equivalent of shutter speeds up tond-hefour steps faster (at near infinity to 1/3x shooting). This provides sharper images in hand-held close-up photography and expands versatility

  • A Nikon Extra - Low Dispersion (ED) glass element delivers superior optical performance for both digital and 35mm photography. ED glass minimizes chromatic aberrations, contributing to improved contrast and resolution performance.

  • Internal Focus (IF) provides fast and quiet auto-focusing without changing the length of the lens, retaining subject working distance through the focus range.

  • Non-Rotating Front Design provides for more convenient use with circular polarizing filters and R1C1 Wireless Close-Up Speedlight System.

  • The Silent Wave Motor (SWM) enables fast and quiet autofocusing, and quick switching between autofocus and manual operation. (M/A and M).

• Nikon D-750 Digital SLR Body only/reg

  • Premier autofocus. Autofocus with power and precision is a rare thing, but the Nikon D750 delivers exactly that thanks to the aforementioned 51-point autofocus system that includes 15 cross-type sensors. This autofocus is fast, quiet, and powerful enough to handle even the most live events.

  • Fast and powerful image sensing. A 24.3 MP FX-format sensor paired with EXPEED 4 image processing gives fast frame rates you needed to capture crisp images. The wide ISO range of 100 to 12,800 (expandable up to ISO 51,200) versatility and power
  • The Nikon d750 recording time is vast, and the full HD 1080 footage is crisp. It has the ability to manually control your ISO, shutter speed and aperture while recording.
  • LCD display to view your images before you capture them. The Nikon captures full-frame bringing a 3.2-inch, 1,229-dot, tilting vari-angle LCD display. This creates the ability to know exactly what will be framed before capturing the image itself—with accuracy and prediction.

• Sandisk Extreme Pro SDXC 64GB Card/170 MBS/V30/REG

  • Read speed up to 95 MB/s1No computer room is required f

  • Write speed up to 90 MB/s1dsf

  • Video speed C10, U3, V30

  • Form Factor: SDXC

• Watson EN-EL15 Replacement Battery V2/REG

  • This replacement pack features a 1900-2000mAh capacity, 7.0V of output power, and 14 watt-hours.

  • Small and lightweight, lithium-ion batteries can be charged or discharged at any time without developing memory effect.

• Quadropod Stand

  • Features 3 section, telescoping tube legs (~15" - 37") and a camera support that can be moved left or right on the frame.

  • The QuadrapodTM is a stable, rugged platform that will support cameras, lenses, or illumination devices.
  • Footprint with sections open:
    – Section one 17" X 16" : approximate working level: 16"
    – Section two 24.5" X 23.5" : approximate working level: 25"
    – Section three 35.5" X 32" : approximate working level: 34.5"
  • Total weight, with bag 4 pounds

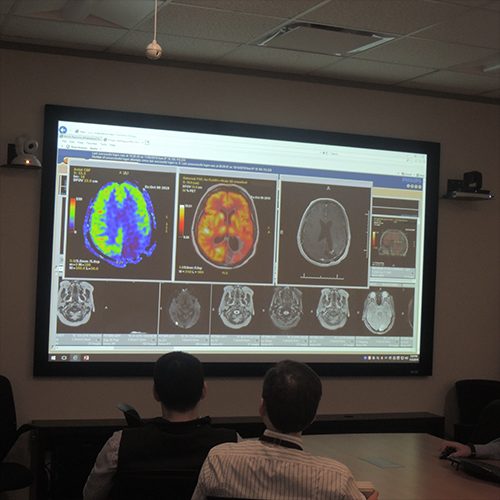

Conference Room in 3SCRB with integration to FCT 14.5001 for high resolution imaging capabilities.

• Wedge Boardroom Table that provides a place to connect and collaborate with streamlined presentation view.

• Logitech Keyboard and Mouse

  • The Logitech MK270 Wireless Keyboard and Mouse combination includes a full size keyboard and a precision mouse.

  • The MK270 includes a plug and forget receiver that cleverly stores inside your mouse for safekeeping.

  • MK270 includes a Logitech Nano receiver. You can instantly use the keyboard without installing additional software. The 2.4GHz signal ensures a strong connection, to avoid dropouts.
